    Euro6IX:
    IPv6 QoS on Demand





    6stream-e6.consulintel.euro6ix.org
    (2001:800:40:2a04:250:8dff:fe49:947c)
    Best Effort




    6stream-6b.consulintel.euro6ix.org
    (3ffe:4011:3aa:2a04:250:8dff:fe49:947c)
    Bandwidth limitation



    Select a Bandwidth


    1. There is a Multihomed IPv6 Video Streaming Server (WMSv9). For
    - 6stream-e6.consulintel.euro6ix.org > Euro6IX path
    - 6stream-6b.consulintel.euro6ix.org > 6Bone path

    2. Hitachi router writes input packets. For
    - Euro6IX path > TC = 64
    - 6Bone path > TC = 32

    3. Hitachi router shapes output packets. For
    - TC = 64 > make priority = 7
    - TC = 32 > max_rate = user configurable, penalty_drop

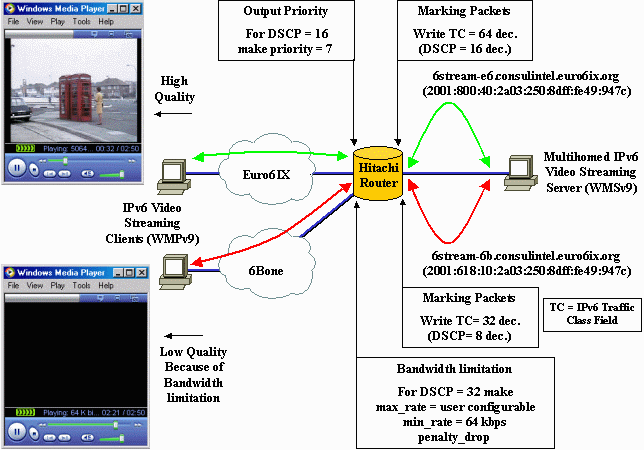

    Topology test-bed


    Note: Windows Media Player tries to show the videos in the better way despite the lower BW, then may be you can't view a different behavior in the videos; but if you consult the statistics (right click on video > statistics > advanced) now you can view the different packets behavior for each video.
